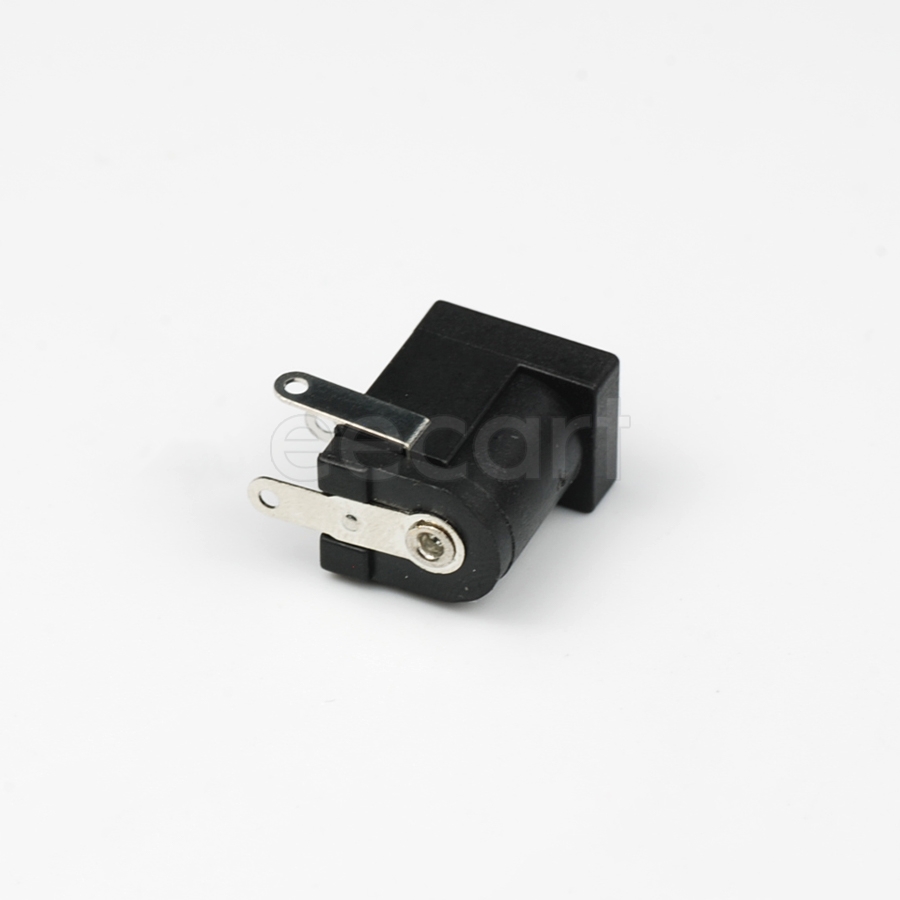

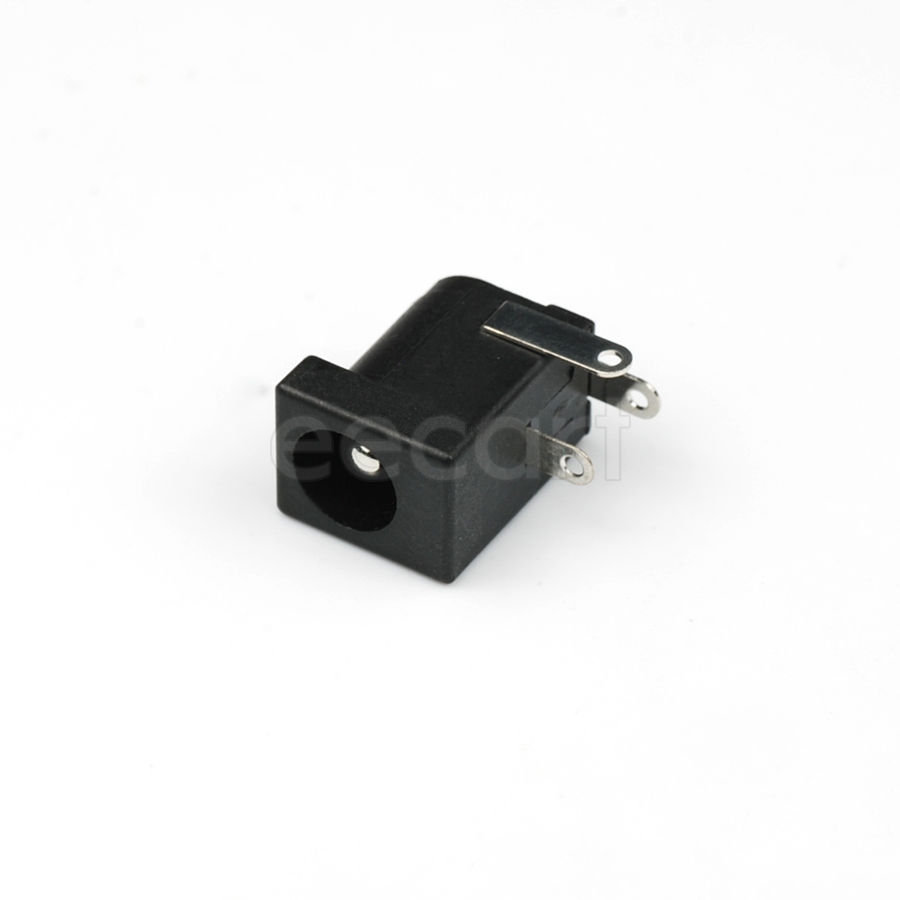

PJ-002BH
Manufacturer:
Same Sky
Mfr.Part #:
PJ-002BH
Datasheet:
Description:
Power Connectors Through Hole Current Rating:5 A Voltage Rating:24 V Jack Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Termination | Through Hole |
| Diameter | 2.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 24 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Copper, Nickel |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Housing Material | Thermoplastic |
| Outside Diameter | 6.5 mm |
| Housing Color | Black |
| Inside Diameter | 2.5 mm |
| Number of Conductors | 2 |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Connector Type | Jack |
Stock: 3732
Distributors
pcbx
pcbxUnit Price$0.35650
Ext.Price$0.35650
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35650 | $0.35650 |
| 10 | $0.30521 | $3.05210 |
| 25 | $0.27870 | $6.96750 |
| 50 | $0.27396 | $13.69800 |
| 100 | $0.26930 | $26.93000 |
| 300 | $0.25294 | $75.88200 |
| 500 | $0.23757 | $118.78500 |
| 1000 | $0.22314 | $223.14000 |
